Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing

  • 1
  • 2

Brand Name : Sayok

Model Number : SN-350XQ/450XQ/600XQ/800XQ

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : EXW US$11000 -18000/set

Payment Terms : T/T

Supply Ability : 50 set /month

Delivery Time : 15 working days

Packaging Details : Exported wooden case

Attitude : aesthetics

Applicable industries : Gifts, crafts, food, clothing, home textile

Packing film : Air Bubble Film

Tunnel : adopt advanced foreign technology

Automatic Grade : Automatic

Driven Type : Mechanical

After-sales service : Video technical support

After Warranty Service : Video technical support

Contact Now

Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing machine

Facture:

1.3 Servo motors , PLC controller , flexible bag length setting and cutting , saving time film.

2.Touchable human –machine operation , convenient and quick parameter setting.

3.Self diagnosis failure function , clear failure display.

4.High sensitivity optical electrical color mark tracking and digital input cut position which makes the sealing and cutting more accurate.

5.Separate PID control to temperature , suitable for various packing materials.

6.Stopping the machine in selected position , no sticking to the knife and no waste packing film, saves 30% of films compared to ordinary e-commerce balers.

7.Simple driving system , reliable working , convenient maintenance.

8.All the controls is are achieved by software , convenient for function adjusting and upgrading.

9.Automatic detect material length and set bag length, stop and wait when no product, no product no packaging.

10. Can link with the automatic labeling machine to be a complete express packing line,more convenient to e-commerce delivery.

Quick Details:

1. Widely use in daily necessities, cosmetics, food, medical etc many industries.

2. Adjust width of bag forming according to the product height width.

3. With waste collection, make the enviroment neat and clean.

4. Automatic counting is available to facilitate manual entry into the box.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.

Specifications:

Model

SN-350XQ/450XQ/600XQ/800XQ

Packing Film

Air Bubble Film

Packing Speed

60-330bags/min(depends on product)

Power Supply

220v 50/60hz 2.6kw

Machine size

4020*770*1450mm
Feeder 4120*870*1550mm
Machine Weght

Approx 580kg

Product’s height Max.60mm/80mm
Bag width

50-160mm/50-180mm/100-280mm/100-380mm

Bag length 65-190/90-280mm 90-220mm/120-330mm

Degree of automation Automatic
Processing customization Customized processing is available
Material Type Solids
Applicable objects restaurants, daily chemicals,pharmaceuticals, hardware, machinery

Machine Details:

1. Vertical packing machine

It can realize the one-step process of material release, packaging and sealing and cutting

Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing

2.Large roll bubble film device
Large rolls of bubble film or PE film, no need to often replace the packaging film, the size of the size according to the product.

Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing

Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing

3. Multi-functional customized mechanical devices enjoy quality service

Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing

Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing

4.Automatic packaging
Save labor and material resources, good sealing, can automatically paste the courier face sheet and then directly arrange for delivery

Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing

5. Packaging

we adopt wooden case as package type. It's suitable for long-distance transport.According to customers' special demand, we could adopt sheet iron case and so on.

Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing

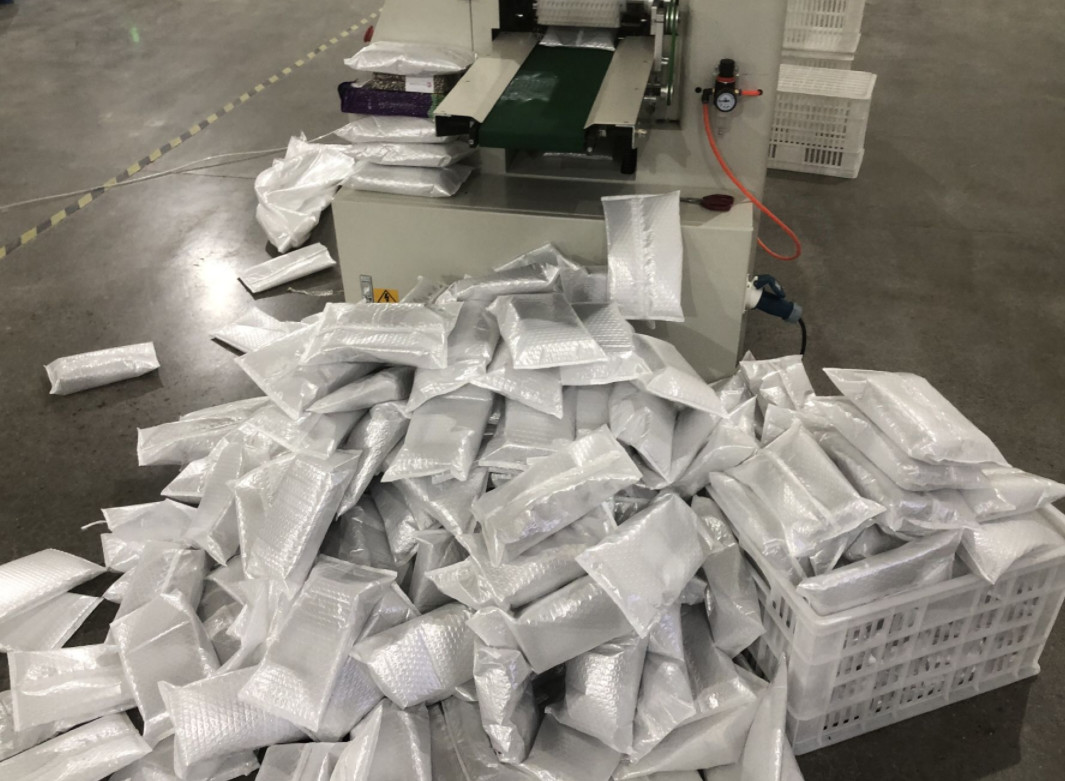

6. Packing neat and aesthetics

Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing

Multifunctional air bubble film paper protective packaging machine horizontal servo control air bubble film bag packing
