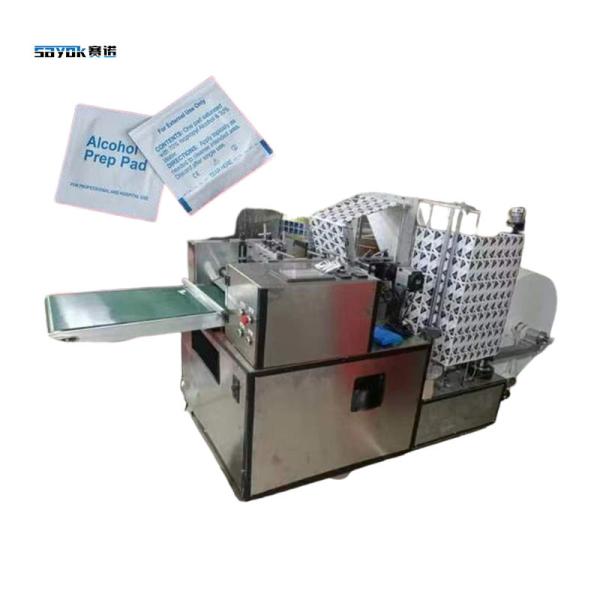

PLC Control Side Sealing Packing Machine 6 Lanes Alcohol Prep Pad Making Machinery

Name: PLC Control Side Sealing Packing Machine 6 Lanes Alcohol Prep Pad Making Machinery
Brand: Sayok
Price: 1 USD

China PLC Control Side Sealing Packing Machine 6 Lanes Alcohol Prep Pad Making Machinery factory

Brand Name : Sayok

Model Number : SN-280D6

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : EXW US$13700-15388/set

Payment Terms : T/T

Supply Ability : 50 set /month

Delivery Time : 20-30 working days

Packaging Details : Exported wooden case

Raw materials : 30-60g/㎡ spunlace non-woven cloth

Sealing way : heating sealing

Packing film : 0.08 mm composite film

Usage : alcohol prep pads, small wipes producing and packing

Operation Mode : HMI

Driven Type : Mechanical

After-sales service : Video technical support

After Warranty Service : Video technical support

Contact Now

PLC Control 6 Lanes Alcohol Prep Pad Making Machinery Sealing Packing Machine

Introduction to Alcohol Swab Packaging Machine

The automatic alcohol pre pads packaging machine is developed by Sayok company basic on many year experience in the production of medical dressing production lines and medical equipment production equipment. Operating stable with high productivity, suitable for bulk production and packaging of alcohol pre pads in the medical, healthcare, and cosmetic industries, these machines cater to the high demand for sterilization and cleansing products.

Facture:

1. HMI: Color touch screen operation interface operation, 7" large touch screen, easy to operate.
2. Servo + PLC Control System: Servo drive system is adopted; PLC programmable controller intelligently controls the operation of the whole machine, precise film feeding, stable transmission of cotton sheets, and precise bag cutting.
3. In-line Printing Technologies: Offering in-line printing technologies, machines can print information directly onto the alcohol swabs or packaging materials, eliminating the need for separate labeling processes. Optional to be normal date coding or inkjet printing.
4. Multi-Functional End-of-Line Solutions: Machine have function of automatic counting and draw distance. Integrating multi-functional end-of-line solutions, these machines can perform additional tasks such as cartoning, bundling, or case packing, streamlining the entire packaging process.
5. Remote Accessibility: With the integration of smart technologies, some machines offer remote accessibility. Operators can monitor and control the machine from a distance, facilitating efficient management and troubleshooting.
6. Multi-Language Support: To cater to a global market, many Alcohol Swab Packaging Machines support multiple languages in their user interfaces, ensuring ease of operation for operators from different linguistic backgrounds, very simple to shift in the operating screen.

Process flow:

Non woven fabric and packaging film rolling machine → non-woven fabric longitudinal fold (Or do not fold) → cutting → adding liquid → folding sheet output → bag making → packaging → sealing → exporting packaged finished products.

Specifications:

Model	SN-280D6
Packing Speed	700~800/min (bag/min)
Expended size	30x60 or 60x60mm
Folded size	30*30mm
Folding way	Folded once, 2 layer or no folded single layer
Packing Size	LW 5050mm, lenth can be customized
Power Supply	220/380V 50/60Hz
Power	5KW
Machine size	(LWH)2500×1200×1500mm
Raw materials	Coiled, 30-60g/㎡ spunlace non-woven fabric, diameter ≤600mm, width 60mm 30/70 R/T or 50/50 R/T
Machine Weght	Approx 500kg

Film width	600mm(mm)
Packing film	73-110g/㎡ paper-aluminum film composite wrapping paper, Φ≤350 mm, width 600 mm, inner diameter of paper core 76.2
Place of Origin	GUANGDONG,CHINA
Applicable industries	Commonly used in the medical, healthcare, and cosmetic industries

Machine Details:

1. Packaging machine appearance making and packing 2 in 1 machine. reasonable design and stainless steel appearance. Durable and long life in use.
2. Fully automated sealing and cutting Snug structure and reasonable design, small footprint with large functions. 6 lanes, can be with or without slitting, more compatible for the non-woven raw material. Easier to get the raw materials with an more economic price.
3. Support two different materials packaging film Can be single roll (top and bottom layer of the same material) can be double roll (top and bottom layer of different materials), convenient for different product packaging options.
4.Fullyautmatic Adopt servo drive system;PLC intelligently controlsthe operation of the wholemachine, precise filmfeeding, stable cottonsheet transmission, andprecise bag cutting
5. Liquidaddition lmported liquid pump, theliquid filling volume isdirectly set on the touchscreen. High precision ofliquid addition
6.Good sealing Tight sealing withoutliquid leakage andbubbling under thepremise of high liquiddosing, four side sealing effect.
6.Support for custom We can customize designs according to customers' needs to meet diverse needs. Our technical department can also help you to analyze, design and test your new products.
